一.Pseudolaricinolide

Crane Crane Horizontal Outrigger Cylinder Block

二.Adaptation model

Suitable for cranes

三.Product Role

The horizontal outrigger cylinder seat of a crane is an important component in the outrigger system, and it plays several key roles during crane operations:1. Support and Fixation - The horizontal outrigger cylinder seat provides a stable mounting position for the horizontal outrigger cylinder. It connects the cylinder to the crane's chassis and ensures that the cylinder does not wobble or shift during extension and retraction. For example, when a large crane is deploying its outriggers, the cylinder seat acts like a sturdy "anchor point," firmly fixing the cylinder to the chassis and ensuring the stability of the outrigger system.2. Force Transmission and Conversion - It effectively transmits the forces generated by the horizontal outrigger cylinder to the crane's chassis structure. As the cylinder extends and retracts, the forces are passed through the cylinder seat to the chassis, enabling the outriggers to stably support the weight of the crane. Moreover, during crane lifting operations, the reaction forces from the ground are transmitted through the outriggers, cylinder seat, and into the chassis, maintaining the overall force balance of the crane. For instance, when the crane lifts a heavy load, the ground exerts an upward reaction force on the outriggers, which is then transmitted through the outriggers and cylinder seat to the chassis, allowing the crane to stably bear the load.3. Guidance Function - The horizontal outrigger cylinder seat often has a guiding structure. It ensures that the horizontal outrigger cylinder moves in the correct direction during extension and retraction, preventing the cylinder from tilting or jamming. This guiding function is crucial for the normal operation of the outrigger system. For example, without proper guidance from the cylinder seat, the cylinder may tilt during movement, which could damage the cylinder's sealing components, leading to oil leakage and affecting the normal operation of the crane.4. Enhancing the Reliability of the Outrigger System - As a key connecting component of the outrigger system, the design and manufacturing quality of the cylinder seat directly affect the reliability of the entire system. A well-designed and high-quality cylinder seat can withstand frequent extension and retraction movements and complex force conditions, reducing the failure rate of the outrigger system. For example, in harsh working environments, such as muddy and damp construction sites, a high-quality cylinder seat can better resist corrosion and wear, ensuring the long-term stable operation of the outrigger system.5. Assisting in Adjusting the Levelness of the Outriggers - In some crane designs, the horizontal outrigger cylinder seat can work in conjunction with other components (such as adjustment bolts) to fine-tune the levelness of the outriggers. When the crane operates on uneven ground, the connection position between the cylinder seat and the outriggers or chassis can be adjusted to better adapt to the ground conditions. This ensures the overall levelness of the crane during operations, thereby improving operational safety and precision.

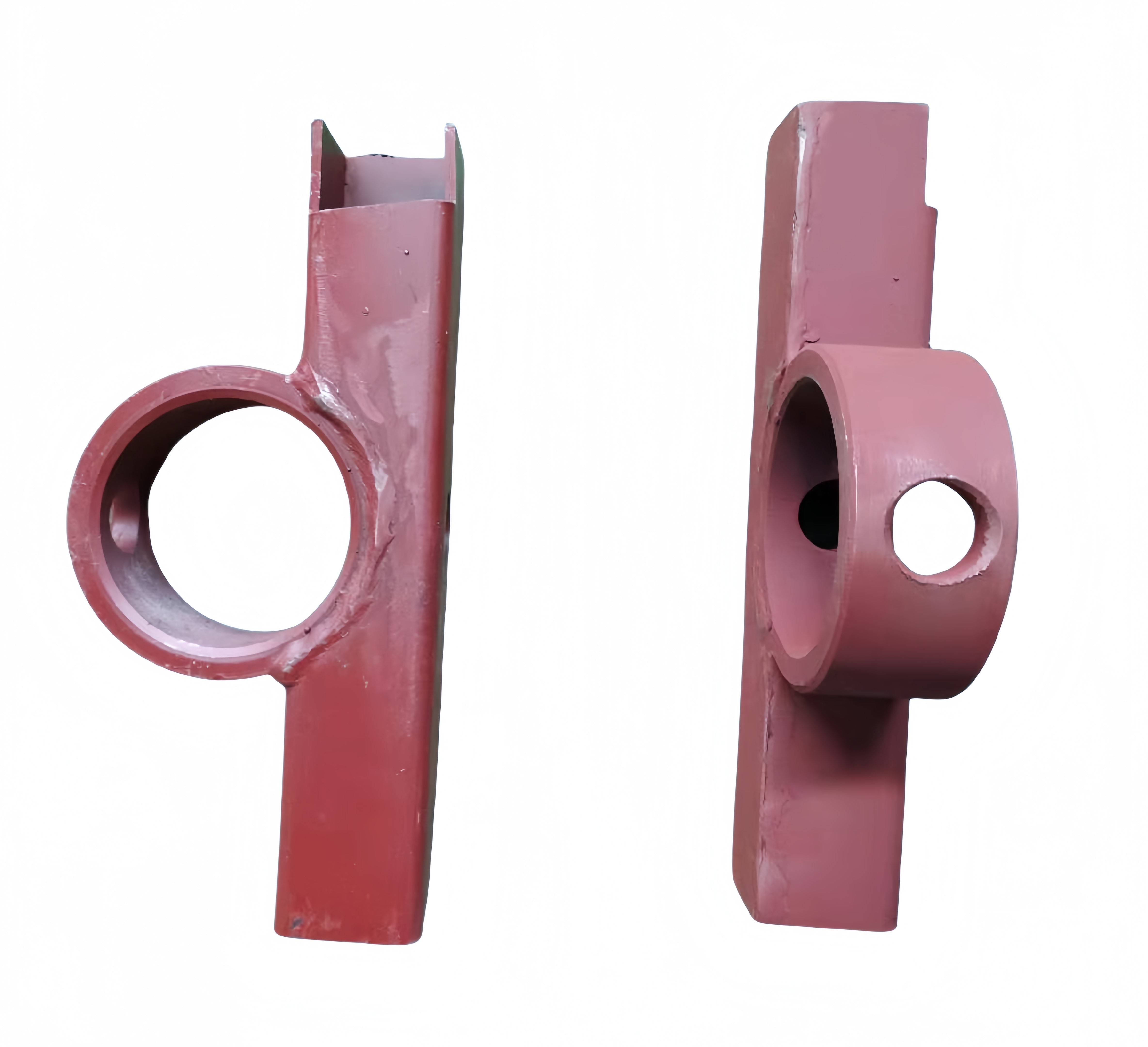

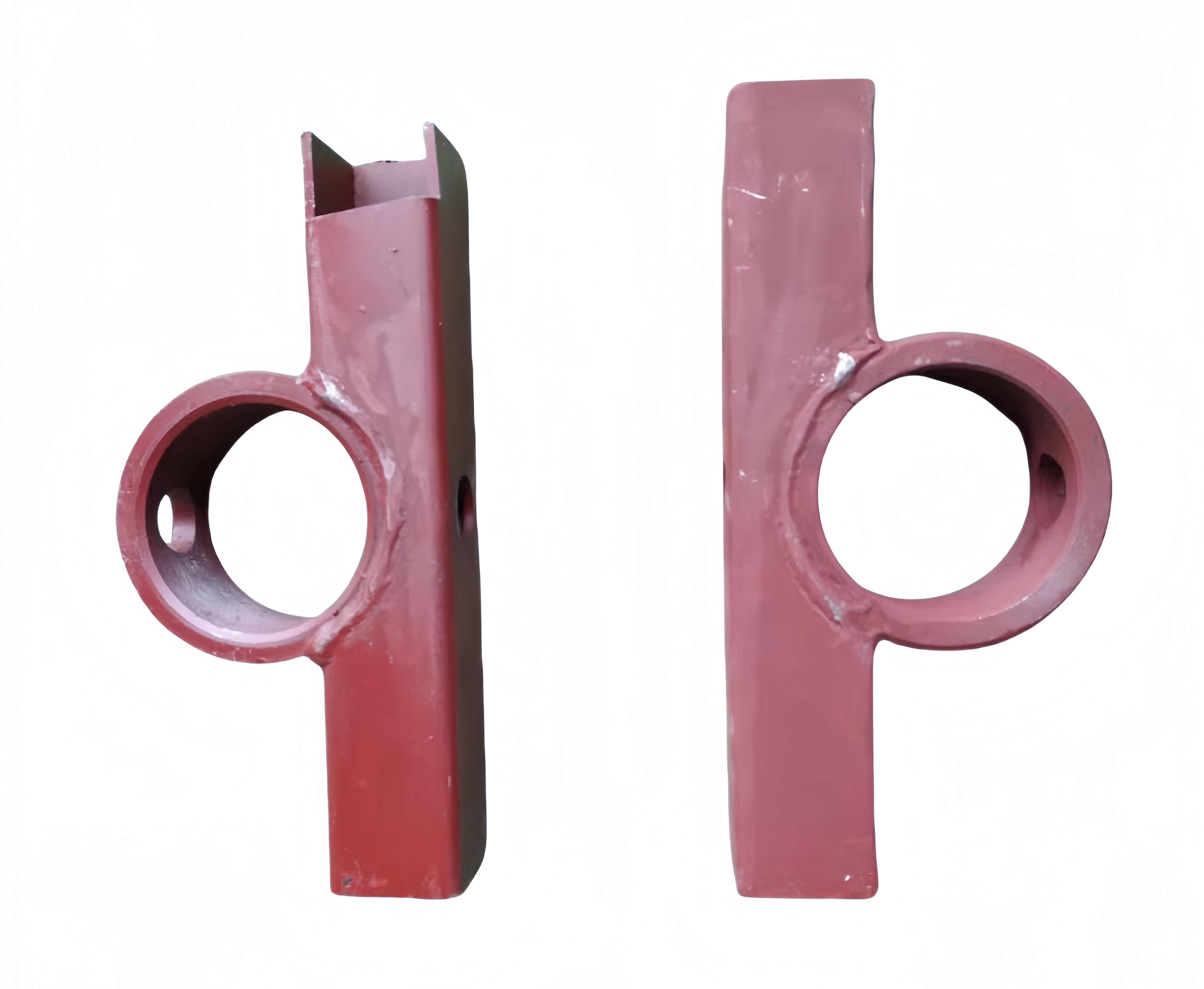

四.Product Details
