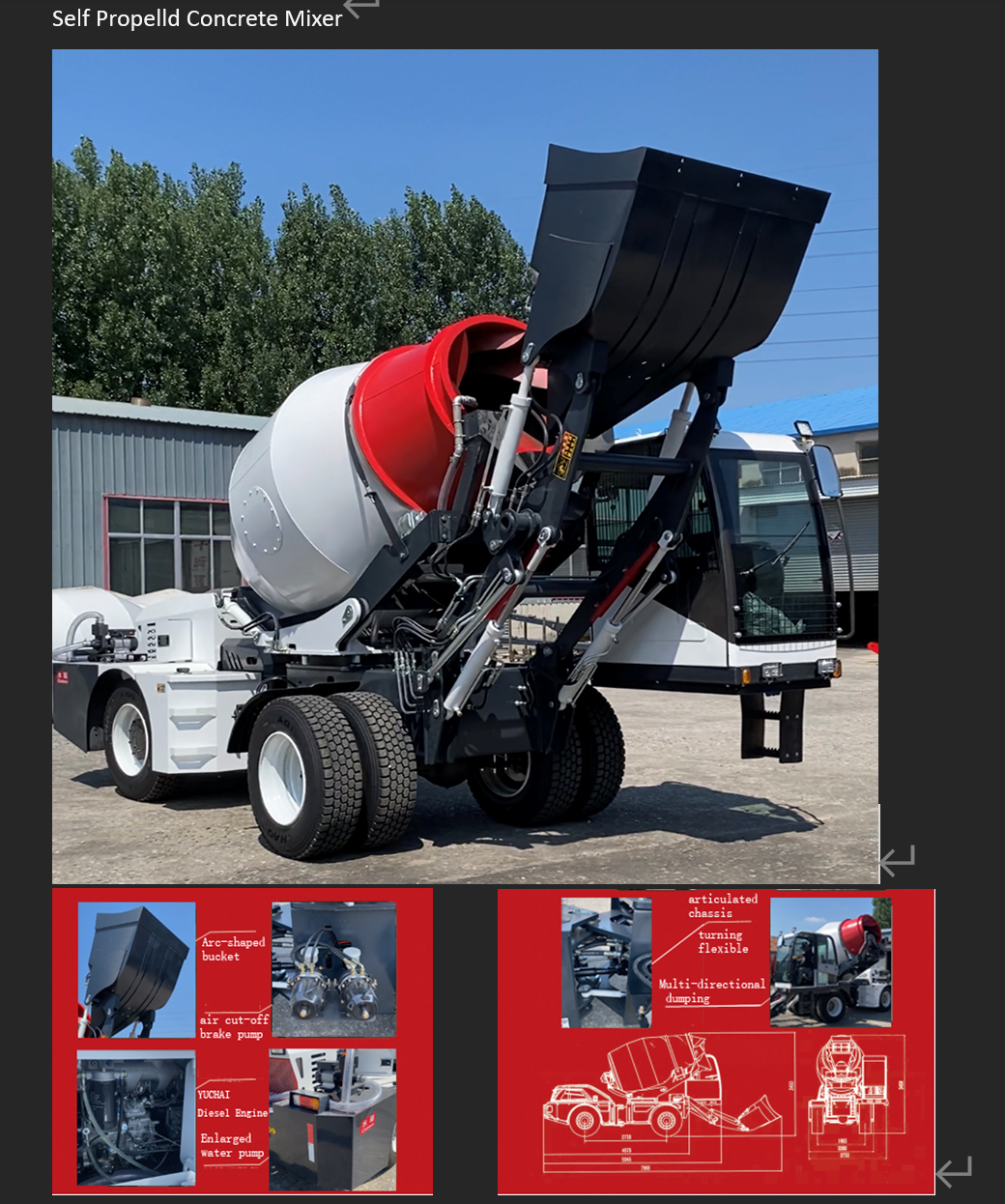

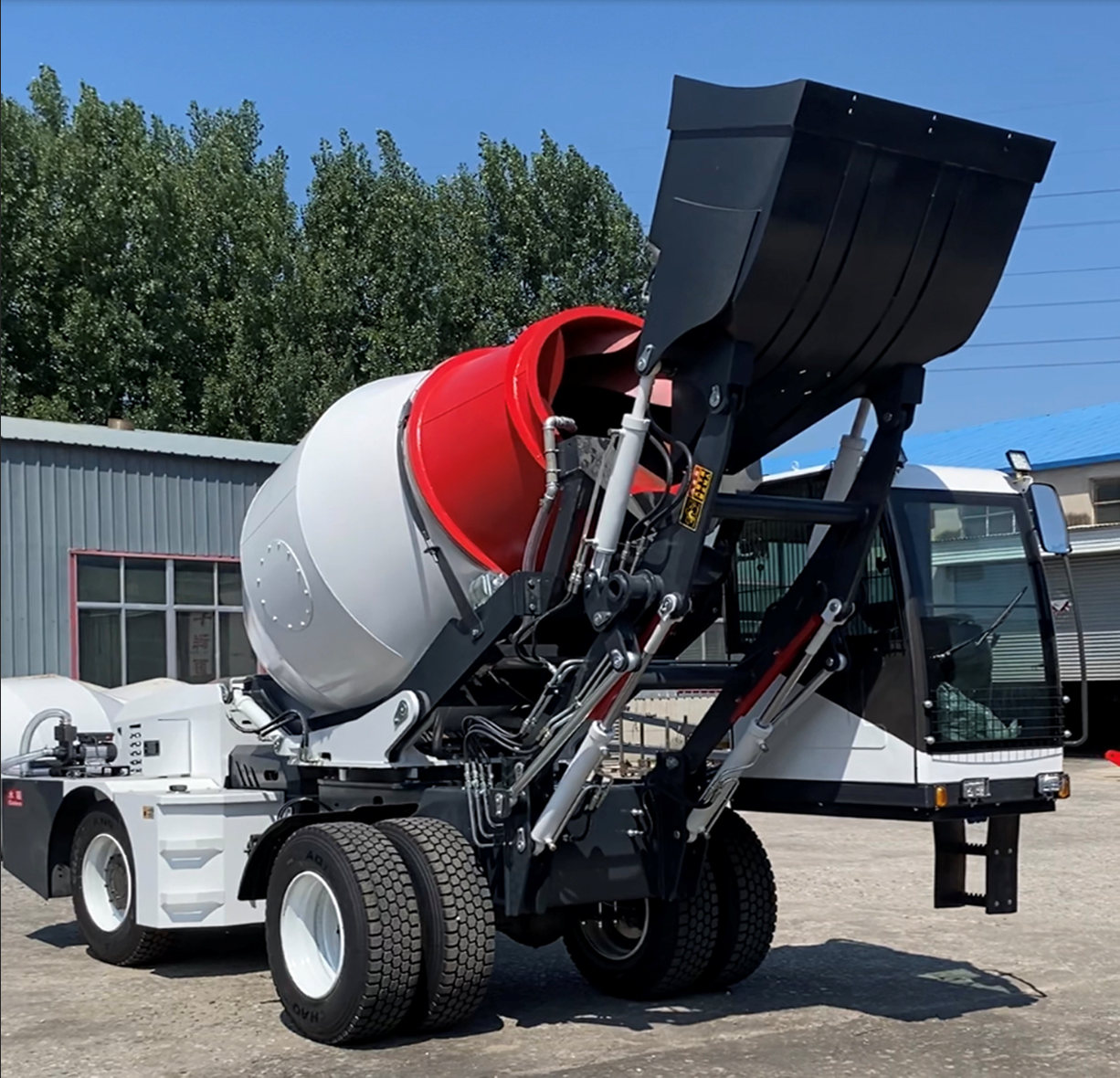

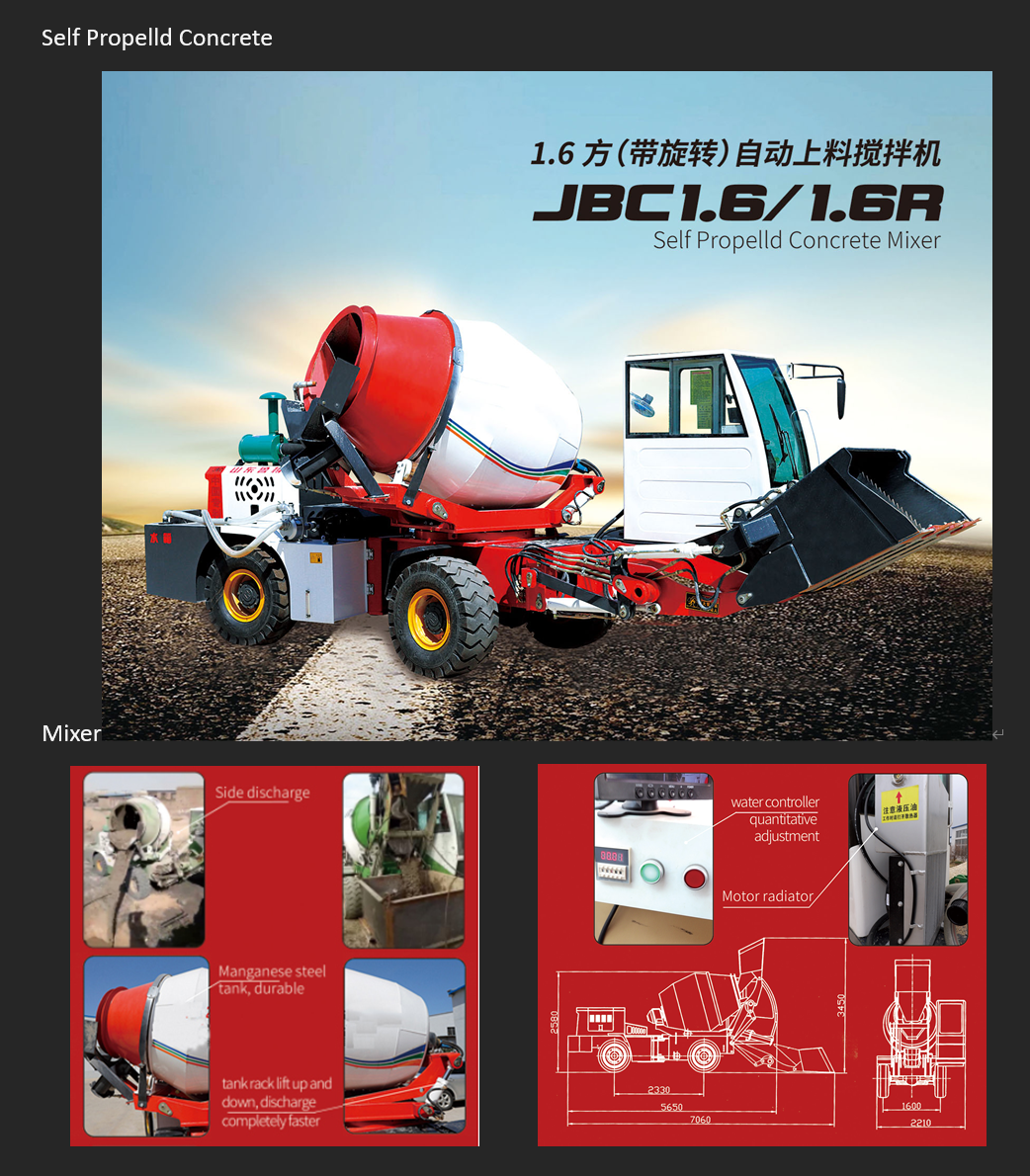

Self Propelld Concrete1.6m³ Self-Loading Concrete Mixer Truck Jbc1.6r/3200 Factory Direct Sale
Self Propelld Concrete1.6m³ Self-Loading Concrete Mixer Truck Jbc1.6r/3200 Factory Direct Sale
Parameter description
|
Diesel engines |
Stirring and unloading |
|
Mode:YCD4T22T-105 Maximum power: 78 kW (106 hp) Maximum torque:330 Nm @2400 rev / min |
The double cone Drum has a double spiral agitating screw and a convex bottom. Drum geometry.......... 2900 Liters Drum rotation speed:......16 Rev / min. Concrete production: ......1.6-1.8Cubic Meters / Drum |
|
Electrical System |
Steering |
|
Generator:28V--800Wa (28A) Battery:2×12V--60AH (272A) Road lighting system |
Articulated steering |
|
4*4four-wheel drive |
|
|
Full-time four-drive speed is 0-23 km / h Torque converter gearbox, open hydraulic gear pump. |
"Self-suction" 24V large capacity pump with quick suction function. Quantitative water supply controller, the mixing is more uniform and more in line with the standard |
|
Operating Cab |
|
|
Wheel-side Deceleration Bridge with planetary reduction gears on the bridge and flanged gearbox. Tires:..20.5-16PR.Maximum loads:2840kg |
The enclosed operating room is available with a heated/cold system and a tilted front window. Humanize seat with flexible suspension and height adjustment. |
|
Brake |
Maintenance amount |
|
The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. |
Fuel tank. ............ 100 liters Total hydraulic system capacity......... 100 liters Engine oil......... 16 liters |
|
Equipment hydraulic system |
Weight |
|
Aluminum heat exchanger is used for cooling hydraulic oil. Open oil inlet, hydraulic oil filter can be replaced externally |
Operating weight: .........5800 kg Maximum total weight:.......9600 kg Maximum load: .............3900 kg |
Parameter description
|
Diesel engines |
|
|
Mode:YCD4T22T-105 Maximum power: 78 kW (106 hp) Maximum torque:330 Nm @2400 rev / min |
The double cone Drum has a double spiral agitating screw and a convex bottom. Drum geometry.......... 3900 Liters Drum rotation speed:......16 Rev / min. Concrete production: ......2.2-2.4Cubic Meters / Drum |
|
Electrical System |
Steering |
|
Generator:28V--800Wa (28A) Battery:2×12V--60AH (272A) Road lighting system |
Articulated steering |
|
4*4four-wheel drive |
Water supply system |
|
Full-time four-drive speed is 0-23 km / h Torque converter gearbox, open hydraulic gear pump. |
"Self-suction" 24V large capacity pump with quick suction function. Quantitative water supply controller, the mixing is more uniform and more in line with the standard |
|
Shaft and tire |
Operating Cab |
|
Aggravated special bridge, the planetary reduction gear, the flanged gear box Rear axle, swing (± 28°), and swinging frame on the bridge.Tires... 20.5-16PR, Maximum load: 2840kg. |
The enclosed operating room is available with a heated/cold system and a tilted front window. Humanize seat with flexible suspension and height adjustment. |
|
Brake |
Maintenance amount |
|
The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. |
Fuel tank. ............ 100 liters Total hydraulic system capacity......... 100 liters Engine oil......... 16 liters |
|
Equipment hydraulic system |
Weight |
|
Aluminum heat exchanger is used for cooling hydraulic oil. Open oil inlet, hydraulic oil filter can be replaced externally |
Operating weight: ..........6800 kg Maximum total weight:.......12500 kg Maximum load: .............5200 kg |
Parameter description
|
Diesel engines |
Stirring and unloading |
|
Mode:YD4J22G Maximum power: 85 kW (116 hp) Maximum torque:390 Nm @2800 rev / min |
The double cone Drum has a double spiral agitating screw and a convex bottom. Drum geometry.......... 5500 Liters Drum rotation speed:......16 Rev / min. Concrete production: ......3.5Cubic Meters / Drum |
|
Electrical System |
Steering |
|
Generator:28V--1500Wa (53.5A) Battery:2×12V--60AH (272A) Road lighting system |
Articulated steering |
|
4*4four-wheel drive |
Water supply system |
|
Full-time four-drive speed is 0-36 km / h Torque converter gearbox, open hydraulic gear pump. |
"Self-suction" 24V large capacity pump with quick suction function. Quantitative water supply controller, the mixing is more uniform and more in line with the standard |
|
Shaft and tire |
Operating Cab |
|
Aggravated special bridge, the planetary reduction gear, the flanged gear box Rear axle, swing (± 28°), and swinging frame on the bridge.Tires...... 122R22.5, Maximum load: 5150kg. 450kPa |
The enclosed operating room is available with a heated/cold system and a tilted front window. Humanize seat with flexible suspension and height adjustment. |
|
Brake |
Maintenance amount |
|
The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. |
Fuel tank. ............ 120 liters Total hydraulic system capacity......... 100 liters Engine oil......... 20 liters Rear enlarged water pump...........................850升 |
|
Equipment hydraulic system |
Weight |
|
Aluminum heat exchanger is used for cooling hydraulic oil. Open oil inlet, hydraulic oil filter can be replaced externally |
Operating weight: ..........8200 kg Maximum total weight:.......16500 kg Maximum load: .............8200 kg |
Parameter description
|
Diesel engines |
Stirring and unloading |
|
Mode:YD4J22G Maximum power: 85 kW (116 hp) Maximum torque:390 Nm @2800 rev / min |
The double cone Drum has a double spiral agitating screw and a convex bottom. Drum geometry.......... 5500 Liters Drum rotation speed:......16 Rev / min. Concrete production: ......3.5Cubic Meters / Drum |
|
Electrical System |
Steering |
|
Generator:28V--1500Wa (53.5A) Battery:2×12V--60AH (272A) Road lighting system |
Articulated steering |
|
4*4four-wheel drive |
Water supply system |
|
Full-time four-drive speed is 0-36 km / h Torque converter gearbox, open hydraulic gear pump. |
"Self-suction" 24V large capacity pump with quick suction function. Quantitative water supply controller, the mixing is more uniform and more in line with the standard |
|
Shaft and tire |
Operating Cab |
|
Aggravated special bridge, the planetary reduction gear, the flanged gear box Rear axle, swing (± 28°), and swinging frame on the bridge.Tires... 16-70-20PR, Maximum load: 5150kg. 450kPa |
The enclosed operating room is available with a heated/cold system and a tilted front window. Humanize seat with flexible suspension and height adjustment. |
|
Brake |
Maintenance amount |
|
The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. |
Fuel tank. ............ 120 liters Total hydraulic system capacity......... 100 liters Engine oil......... 20 liters |
|
Equipment hydraulic system |
Weight |
|
Aluminum heat exchanger is used for cooling hydraulic oil. Open oil inlet, hydraulic oil filter can be replaced externally |
Operating weight: ..........8800 kg Maximum total weight:.......16700 kg Maximum load: .............8200 kg |
Parameter description
|
Diesel engines |
Stirring and unloading |
|
Mode:YD4J22G Maximum power: 85 kW (116 hp) Maximum torque:390 Nm @2800 rev / min |
The double cone Drum has a double spiral agitating screw and a convex bottom. Drum geometry..........5500 Liters Drum rotation speed:......16 Rev / min. Concrete production: ......3.5Cubic Meters / Drum |
|
Electrical System |
Steering |
|
Generator:28V--1500Wa (53.5A) Battery:2×12V--60AH (272A) Road lighting system |
Articulated steering |
|
4*4four-wheel drive |
Water supply system |
|
Full-time four-drive speed is 0-36 km / h Torque converter gearbox, open hydraulic gear pump. |
"Self-suction" 24V large capacity pump with quick suction function. Quantitative water supply controller, the mixing is more uniform and more in line with the standard |
|
Shaft and tire |
Operating Cab |
|
Aggravated special bridge, the planetary reduction gear, the flanged gear box Rear axle, swing (± 28°), and swinging frame on the bridge.Tires...... 122R22.5, Maximum load: 5150kg. 450kPa |
The enclosed operating room is available with a heated/cold system and a tilted front window. Humanize seat with flexible suspension and height adjustment. |
|
Brake |
Maintenance amount |
|
The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. |
Fuel tank. ............ 120 liters Total hydraulic system capacity......... 100 liters Engine oil......... 20 liters |
|
Equipment hydraulic system |
Weight |
|
Aluminum heat exchanger is used for cooling hydraulic oil. Open oil inlet, hydraulic oil filter can be replaced externally |
Operating weight: ..........8500 kg Maximum total weight:.......16700 kg Maximum load: .............8200 kg |
Parameter description
|
Diesel engines |
Stirring and unloading |
|
Mode:YD4J22G Maximum power: 91kW (125 hp) Maximum torque:410 Nm @2800 rev / min |
The double cone Drum has a double spiral agitating screw and a convex bottom. Drum geometry.......... 6100 Liters Drum rotation speed:......16 Rev / min. Concrete production: ......3.8-4.0 Cubic Meters / Drum |
|
Electrical System |
Steering |
|
Generator:28V--1500Wa (53.5A) Battery:2×12V--60AH (272A) Road lighting system |
Articulated steering |
|
4*4four-wheel drive |
Water supply system |
|
Full-time four-drive speed is 0-36 km / h Torque converter gearbox, open hydraulic gear pump. |
"Self-suction" 24V large capacity pump with quick suction function. Quantitative water supply controller, the mixing is more uniform and more in line with the standard |
|
Shaft and tire |
Operating Cab |
|
Aggravated special bridge, the planetary reduction gear, the flanged gear box Rear axle, swing (± 28°), and swinging frame on the bridge.Tires...... 122R22.5, Maximum load: 5150kg. 450kPa |
The enclosed operating room is available with a heated/cold system and a tilted front window. Humanize seat with flexible suspension and height adjustment. |
|
Brake |
Maintenance amount |
|
The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. |
Fuel tank. ............ 120 liters Total hydraulic system capacity......... 100 liters Engine oil......... 20 liters Rear enlarged water pump...........................850升 |
|
Equipment hydraulic system |
Weight |
|
Aluminum heat exchanger is used for cooling hydraulic oil. Open oil inlet, hydraulic oil filter can be replaced externally |
Operating weight: ..........8500 kg Maximum total weight:.......16500 kg Maximum load: .............8400 kg |
|
Diesel engines |
Stirring and unloading |
|
Mode:YD4J22G Maximum power: 91 kW (126 hp) Maximum torque:440 Nm @2800 rev / min |
The double cone Drum has a double spiral agitating screw and a convex bottom. Drum geometry.......... 6500 Liters Drum rotation speed:......16 Rev / min. Concrete production: ......4.0-4.5 Cubic Meters / Drum |
|
Electrical System |
Steering |
|
Generator:28V--1500Wa (53.5A) Battery:2×12V--100AH (454A) Road lighting system |
Front wheel steering |
|
4*4four-wheel drive |
Water supply system |
|
Full-time four-drive speed is 0-36 km / h Torque converter gearbox, open hydraulic gear pump. |
"Self-suction" 24V large capacity pump with quick suction function. Quantitative water supply controller, the mixing is more uniform and more in line with the standard |
|
Axles and tires |
Operating Cab |
|
Aggravated special bridge,the planetary reduction gear,the flanged gearbox Rear axle, swing(± 28°), and swinging frame on the bridge.Whole car is full frame,rear wheel double spring shock plate Tires... 16-70-20PR, Maximum load:5150kg,450kPa |
The enclosed operating room is available with a heated/cold system and a tilted front window. Humanize seat with flexible suspension and height adjustment. |
|
Brake |
Maintenance amount |
|
The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. |
Fuel tank. ............ 135 liters Total hydraulic system capacity......... 240 liters Engine oil......... 20 liters |
|
Equipment hydraulic system |
Weight |
|
Aluminum heat exchanger is used for cooling hydraulic oil. Open oil inlet, hydraulic oil filter can be replaced externally |
Operating weight: ..........8800 kg Maximum total weight:.......18400 kg Maximum load: .............9600 kg |
